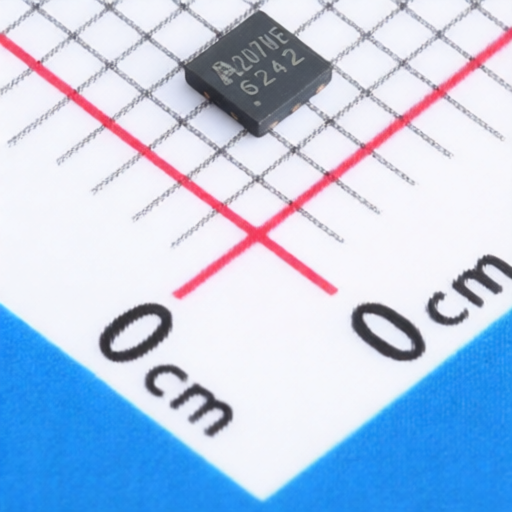

ALLPOWER AP6242
Manufacturer:
ALLPOWER
Asian Brands
Mfr. Part #:
AP6242
Package:
PQFN2x2
Customer #:
Key Attributes:
MOSFET N-CH 20V 12A PQFN2x2
Description:
N-Channel 20V 12A 2W Surface Mount PQFN2x2
Products Specifications
Manufacturer:
Package:
PQFN2x2
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
12A
Operating Temperature -:
-55℃~+150℃
RDS(on):
9mΩ@4.5V;12mΩ@2.5V
Gate Threshold Voltage (Vgs(th)):
700mV
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
200pF
Number:
1 N-channel
Pd - Power Dissipation:
2W
Gate Charge(Qg):
17.9nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
Get Best Price
Inquiry
Negotiate
Payment
Shipping
ALLPOWER
286 Products
Jiangsu All Power
Microelectronics Co., Ltd.
(hereinafter referred to as "ALLPOWER") was established in 2016. As a high-tech enterprise, ALLPOWER specializes in the research, development, and sales of power semiconductor electronic components. The company is headquartered in Shenzhen, China, with branches in South Korea and Guangzhou. Leveraging its strong independent R&D capabilities and advanced manufacturing expertise, ALLPOWER delivers over 400 million high-performance semiconductor products annually. Its product portfolio includes medium- and low-voltage MOSFETs, AC-DC power management chips, and more. ALLPOWER has become a trusted long-term partner to industries such as computing, network communications, consumer electronics, mobile phones, and batteries, with its products being exported to international markets and markets within the country.
