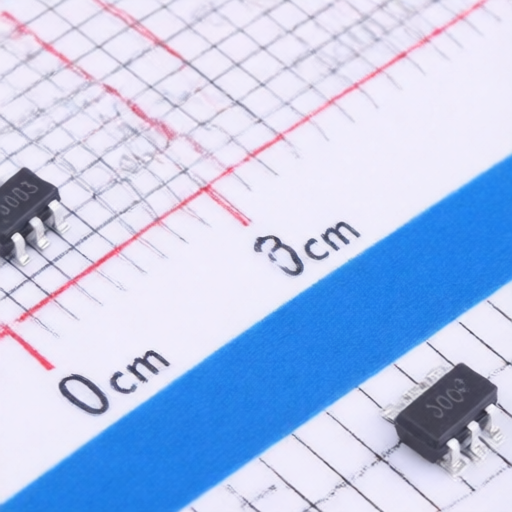

ALLPOWER AP3003
Manufacturer:
ALLPOWER
Asian Brands
Mfr. Part #:
AP3003
Package:
SOT-23-6
Customer #:
Key Attributes:
MOSFET N-CH+P-CH ARR 30V 5.8A SOT-23-6
Description:
N-Channel+P-Channel Array 30V 5.8A 1.7W Surface Mount SOT-23-6
Products Specifications
Manufacturer:
Package:
SOT-23-6
Drain to Source Voltage:
30V
Current - Continuous Drain(Id):
5.8A
Operating Temperature -:
-55℃~+150℃
RDS(on):
38mΩ@4.5V
Gate Threshold Voltage (Vgs(th)):
1.5V@250uA
Type:
N-Channel + P-Channel
Reverse Transfer Capacitance (Crss@Vds):
52pF
Number:
1 N-Channel + 1 P-Channel
Output Capacitance(Coss):
66pF
Pd - Power Dissipation:
1.7W
Input Capacitance(Ciss):
700pF
Gate Charge(Qg):
4.8nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
Get Best Price
Inquiry
Negotiate
Payment
Shipping
ALLPOWER
286 Products
Jiangsu All Power
Microelectronics Co., Ltd.
(hereinafter referred to as "ALLPOWER") was established in 2016. As a high-tech enterprise, ALLPOWER specializes in the research, development, and sales of power semiconductor electronic components. The company is headquartered in Shenzhen, China, with branches in South Korea and Guangzhou. Leveraging its strong independent R&D capabilities and advanced manufacturing expertise, ALLPOWER delivers over 400 million high-performance semiconductor products annually. Its product portfolio includes medium- and low-voltage MOSFETs, AC-DC power management chips, and more. ALLPOWER has become a trusted long-term partner to industries such as computing, network communications, consumer electronics, mobile phones, and batteries, with its products being exported to international markets and markets within the country.
