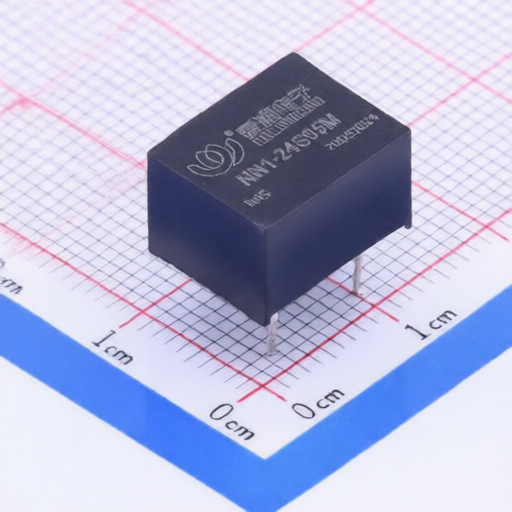

AIPULNION NN1-24S05M
Manufacturer:
AIPULNION
Asian Brands
Mfr. Part #:
NN1-24S05M
Package:
Through Hole
Customer #:
Key Attributes:
DC-DC modular power supply, fixed voltage input, isolated non-regulated output, output power 1W
Description:
Isolated Module DC DC Converter 1 Output 5V 200mA 21.6V~26.4V Input
Datasheet:
AIPULNION NN1-24S05M
Products Specifications
Manufacturer:
Package:
Through Hole
Height:
8.2mm
Vin:
21.6V~26.4V
Vout:
5V
Operating Temperature:
-40℃~+85℃
Capacitive Load(Max):
100uF
Number of Outputs:
1
Ripple:
120mVp-p
Length:
12.7mm
Iout:
200mA
Width:
10mm
Frequency - Switching:
100kHz
Isolation Voltage(Vrms):
1kV
Conversion Efficiency:
77%
Output Power:
1W
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 17 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | - |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
