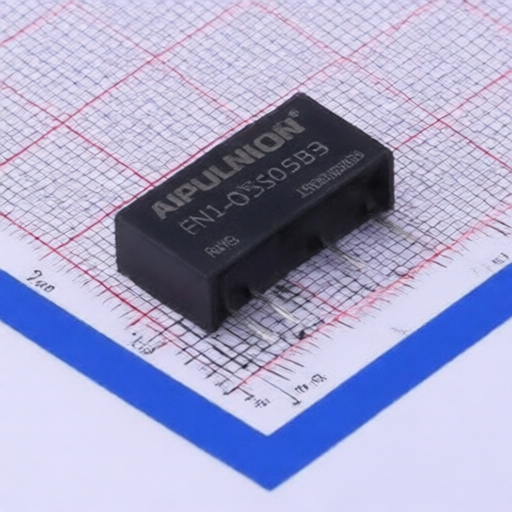

AIPULNION FN1-05S05B3
Manufacturer:
AIPULNION
Asian Brands
Mfr. Part #:
FN1-05S05B3
Package:
SIP,19.5x6mm
Customer #:
Key Attributes:
DC/DC modular power supply, fixed voltage input, isolated non-regulated output, output power of 1W, conversion efficiency up to 83%, small SIP package, isolation voltage of 3000VDC
Description:
Isolated Module DC DC Converter Buck 1 Output 5V 200mA 4.5V~5.5V Input
Datasheet:
AIPULNION FN1-05S05B3
Products Specifications
Manufacturer:
Package:
SIP,19.5x6mm
Height:
10mm
Vin:
4.5V~5.5V
Vout:
5V
Operating Temperature:
-40℃~+85℃
Capacitive Load(Max):
3000uF
Number of Outputs:
1
Ripple:
100mVp-p
Length:
19.5mm
Iout:
200mA
Width:
6mm
Frequency - Switching:
100kHz
Isolation Voltage(Vrms):
3kV
Conversion Efficiency:
76%
Output Power:
1W
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 10 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | - |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
