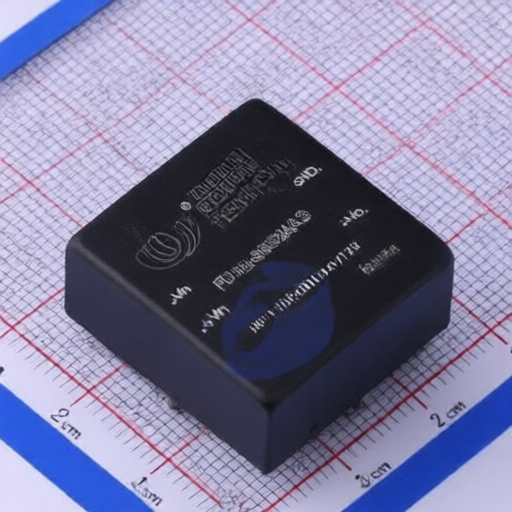

AIPULNION FD12-36S24A3
Manufacturer:
AIPULNION
Asian Brands
Mfr. Part #:
FD12-36S24A3
Package:
DIP,25.4x25.4mm
Customer #:
Key Attributes:
DC/DC modular power supply, wide-range input, output power of 12W, high conversion efficiency, and comprehensive protection functions
Description:
Isolated Module DC DC Converter Buck 1 Output 24V 500mA 18V~75V Input
Datasheet:
AIPULNION FD12-36S24A3
Products Specifications
Manufacturer:
Package:
DIP,25.4x25.4mm
Height:
11mm
Vin:
18V~75V
Vout:
24V
Operating Temperature:
-40℃~+85℃
Capacitive Load(Max):
600uF
Number of Outputs:
1
Ripple:
50mVp-p
Length:
25.4mm
Iout:
500mA
Width:
25.4mm
Frequency - Switching:
250kHz
Isolation Voltage(Vrms):
1.5kV
Output Power:
12W
Conversion Efficiency:
86%
Features:
Under Voltage Protection
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 120 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | - |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
