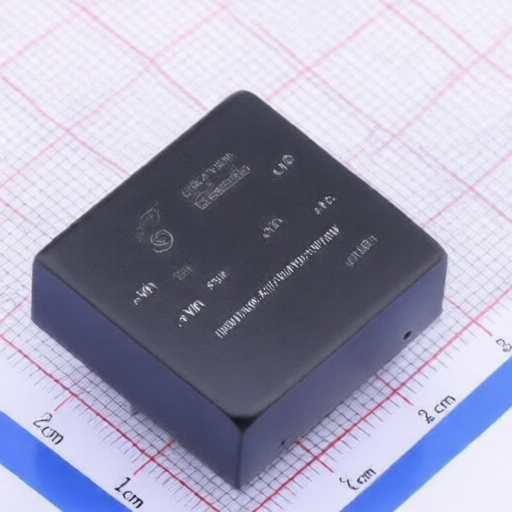

AIPULNION FD6-36S05A3
Manufacturer:
AIPULNION
Asian Brands
Mfr. Part #:
FD6-36S05A3
Package:
DIP,25.4x25.4mm
Customer #:
Key Attributes:
DC/DC modular power supply, wide-range input, 6W output power
Description:
Isolated Module DC DC Converter 1 Output 5V 1.2A 18V~75V Input
Datasheet:
AIPULNION FD6-36S05A3
Products Specifications
Manufacturer:
Package:
DIP,25.4x25.4mm
Height:
11.5mm
Number of Outputs:
1
Length:
25.4mm
Iout:
1.2A
Width:
25.4mm
Vin:
18V~75V
Vout:
5V
Frequency - Switching:
300kHz
Operating Temperature:
-40℃~+85℃
Output Power:
6W
Conversion Efficiency:
84%
Capacitive Load(Max):
2000uF
Features:
Short Circuit Protection;Over Current Protection
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 10 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | - |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
