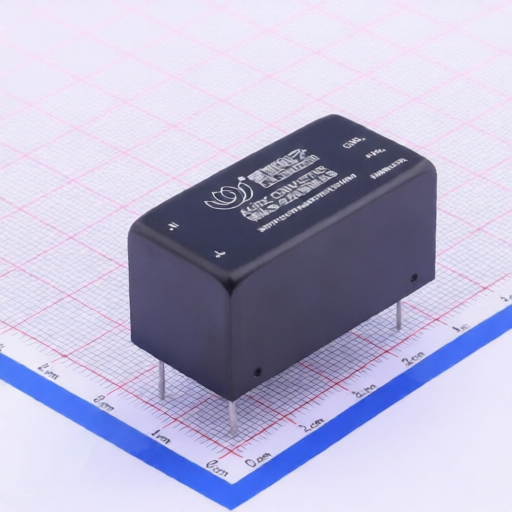

AIPULNION WA3-220S05A3
Manufacturer:
AIPULNION
Asian Brands
Mfr. Part #:
WA3-220S05A3
Package:
Through Hole,38x18mm
Customer #:
Key Attributes:
High-efficiency AC-DC Power Module with Wide Input Range
Description:
AC DC Converters 1 Output 5V 600mA 85~265 VAC 120~380 VDC input
Datasheet:
AIPULNION WA3-220S05A3
Products Specifications
Manufacturer:
Package:
Through Hole,38x18mm
Quiescent Dissipation:
0.3W
Height:
18mm
Ripple Noise:
80mVp-p
output voltage:
5V
Isolation Voltage(Vrms):
2.5kV
Output Power:
3W
Voltage - Input(DC):
85VAC~265VAC;120V~380V
Switching Frequency:
60kHz
Output current (maximum value):
600mA
Capacitive Load(Max):
1000uF
Length:
38mm
Width:
18mm
Number of Outputs:
1
Conversion Efficiency:
73%
Conversion Type:
AC-DC
Features:
Over Current Protection;Short Circuit Protection;Over Temperature Protection
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 70 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8504902000 |
| USHTS | 8504909690 |
| TARIC | 8504909000 |
| CAHTS | 8504909090 |
| BRHTS | 85049020 |
| INHTS | 85049090 |
| MXHTS | 8504.90.99 |
