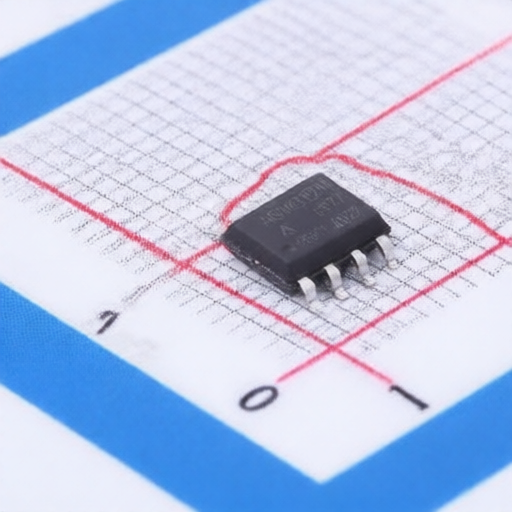

AGMSEMI AGM312M2
Manufacturer:
AGMSEMI
Asian Brands
Mfr. Part #:
AGM312M2
Package:
SOP-8
Customer #:
Key Attributes:
MOSFET N-CH+P-CH ARR 30V 9A SOP-8
Description:
N-Channel+P-Channel 30V 9A 2.5W Surface Mount SOP-8
Datasheet:
AGMSEMI AGM312M2
Products Specifications
Manufacturer:
Package:
SOP-8
Drain to Source Voltage:
30V
Current - Continuous Drain(Id):
9A;6.8A
RDS(on):
18mΩ@10V;37mΩ@10V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
2.2V@250uA
Type:
N-Channel + P-Channel
Reverse Transfer Capacitance (Crss@Vds):
33pF;57pF
Number:
1 N-Channel + 1 P-Channel
Output Capacitance(Coss):
95pF;115pF
Pd - Power Dissipation:
2.5W
Input Capacitance(Ciss):
510pF;620pF
Gate Charge(Qg):
5.8nC@4.5V;16nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
