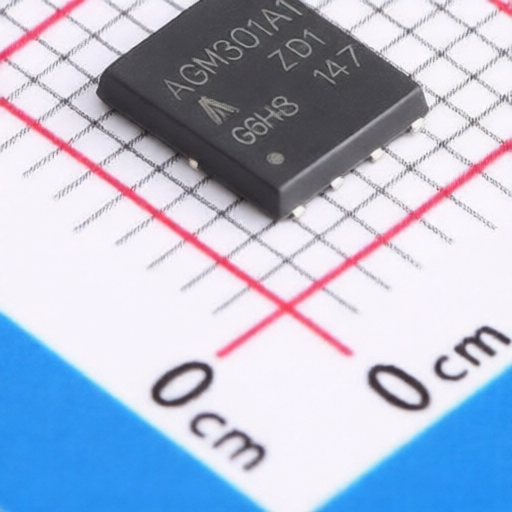

AGMSEMI AGM301A1
Manufacturer:
AGMSEMI
Asian Brands
Mfr. Part #:
AGM301A1
Package:
PDFN-8(5x6)
Customer #:
Key Attributes:
MOSFET N-CH 30V 150A PDFN-8(5x6)
Description:
N-Channel 30V 150A 130W Surface Mount PDFN-8(5x6)
Datasheet:
AGMSEMI AGM301A1
Products Specifications
Manufacturer:
Package:
PDFN-8(5x6)
Drain to Source Voltage:
30V
Current - Continuous Drain(Id):
150A
Operating Temperature -:
-55℃~+150℃
RDS(on):
1.5mΩ@10V;2.5mΩ@4.5V
Gate Threshold Voltage (Vgs(th)):
1.6V@250uA
Reverse Transfer Capacitance (Crss@Vds):
560pF
Number:
1 N-channel
Output Capacitance(Coss):
800pF
Input Capacitance(Ciss):
5.6nF
Pd - Power Dissipation:
130W
Gate Charge(Qg):
99nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
AGMSEMI
609 Products
AGMSEMI Core Control Electronic Technology Co., Ltd.
(hereinafter referred to as "AGM-Semi") is a leading designer and marketer of modern high-power semiconductor devices in China, specializing in the design, production, and marketing of a wide range of high-power semiconductor devices and power-integrated devices. AGM-Semi is based on independent innovation, owns independent intellectual property rights, and is committed to the "AGM-Semi" independent product brand. At present, the company specializes in the R&D, design, production, testing, quality assessment, sales, and service of super-junction MOSFETs, NPT-IGBT, and trench-type high-power MOS devices. AGM-Semi has established design and operation centers, sales companies, and outsourcing chip flow bases, finished product packaging bases, and finished product testing bases in mainland China and Hong Kong respectively, and has a perfect quality control assurance system to ensure the consistency and stability of product quality.
