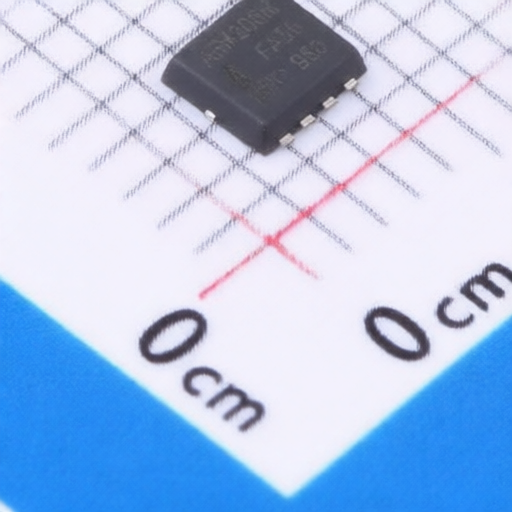

AGMSEMI AGM206MAP
Manufacturer:
AGMSEMI
Asian Brands
Mfr. Part #:
AGM206MAP
Package:
PDFN-8(3.3x3.3)
Customer #:
Key Attributes:
MOSFET N-CH ARR 22V 25A PDFN-8(3.3x3.3)
Description:
N-Channel Array 22V 25A 72W Surface Mount PDFN-8(3.3x3.3)
Datasheet:
AGMSEMI AGM206MAP
Products Specifications
Manufacturer:
Package:
PDFN-8(3.3x3.3)
Drain to Source Voltage:
22V
Current - Continuous Drain(Id):
25A
Operating Temperature -:
-55℃~+150℃
RDS(on):
6mΩ@4.5V
Gate Threshold Voltage (Vgs(th)):
800mV@250uA
Reverse Transfer Capacitance (Crss@Vds):
177pF
Number:
2 N-Channel
Output Capacitance(Coss):
203pF
Input Capacitance(Ciss):
1.94nF
Pd - Power Dissipation:
72W
Gate Charge(Qg):
17.5nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 5000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
AGMSEMI
609 Products
AGMSEMI Core Control Electronic Technology Co., Ltd.
(hereinafter referred to as "AGM-Semi") is a leading designer and marketer of modern high-power semiconductor devices in China, specializing in the design, production, and marketing of a wide range of high-power semiconductor devices and power-integrated devices. AGM-Semi is based on independent innovation, owns independent intellectual property rights, and is committed to the "AGM-Semi" independent product brand. At present, the company specializes in the R&D, design, production, testing, quality assessment, sales, and service of super-junction MOSFETs, NPT-IGBT, and trench-type high-power MOS devices. AGM-Semi has established design and operation centers, sales companies, and outsourcing chip flow bases, finished product packaging bases, and finished product testing bases in mainland China and Hong Kong respectively, and has a perfect quality control assurance system to ensure the consistency and stability of product quality.
