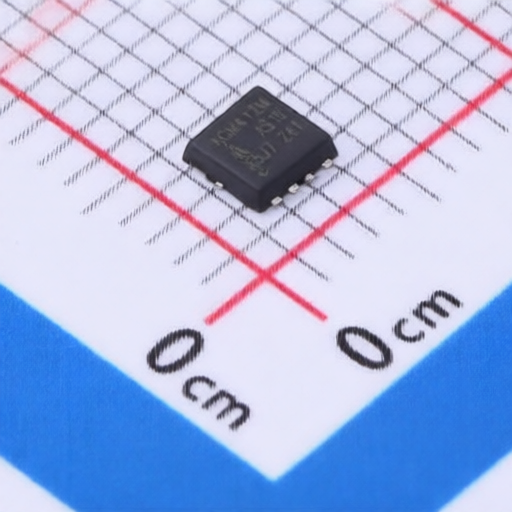

AGMSEMI AGM412MAP
Manufacturer:
AGMSEMI
Asian Brands
Mfr. Part #:
AGM412MAP
Package:
PDFN-8(3.3x3.3)
Customer #:
Key Attributes:
MOSFET N-CH ARR 40V 22A PDFN-8(3.3x3.3)
Description:
N-Channel Array 40V 22A 35W Surface Mount PDFN-8(3.3x3.3)
Datasheet:
AGMSEMI AGM412MAP
Products Specifications
Manufacturer:
Package:
PDFN-8(3.3x3.3)
Drain to Source Voltage:
40V
Current - Continuous Drain(Id):
22A
Operating Temperature -:
-55℃~+150℃
RDS(on):
10mΩ@10V;14mΩ@4.5V
Gate Threshold Voltage (Vgs(th)):
1.7V@250uA
Reverse Transfer Capacitance (Crss@Vds):
61pF
Number:
2 N-Channel
Output Capacitance(Coss):
75pF
Pd - Power Dissipation:
35W
Input Capacitance(Ciss):
1.195nF
Gate Charge(Qg):
13nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 5000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
AGMSEMI
609 Products
AGMSEMI Core Control Electronic Technology Co., Ltd.
(hereinafter referred to as "AGM-Semi") is a leading designer and marketer of modern high-power semiconductor devices in China, specializing in the design, production, and marketing of a wide range of high-power semiconductor devices and power-integrated devices. AGM-Semi is based on independent innovation, owns independent intellectual property rights, and is committed to the "AGM-Semi" independent product brand. At present, the company specializes in the R&D, design, production, testing, quality assessment, sales, and service of super-junction MOSFETs, NPT-IGBT, and trench-type high-power MOS devices. AGM-Semi has established design and operation centers, sales companies, and outsourcing chip flow bases, finished product packaging bases, and finished product testing bases in mainland China and Hong Kong respectively, and has a perfect quality control assurance system to ensure the consistency and stability of product quality.
