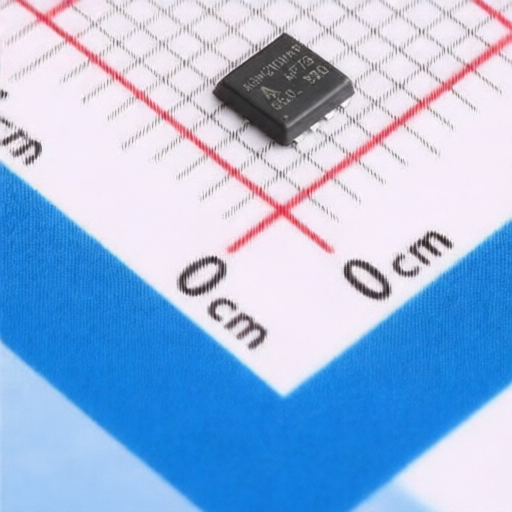

AGMSEMI AGM210MAP
Manufacturer:
AGMSEMI
Asian Brands
Mfr. Part #:
AGM210MAP
Package:
PDFN-8(3.3x3.3)
Customer #:
Key Attributes:
MOSFET N-CH+P-CH ARR 20V 25A PDFN-8(3.3x3.3)
Description:
N-Channel+P-Channel 20V 25A 35W Surface Mount PDFN-8(3.3x3.3)
Datasheet:
AGMSEMI AGM210MAP
Products Specifications
Manufacturer:
Package:
PDFN-8(3.3x3.3)
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
25A
Operating Temperature -:
-55℃~+150℃
RDS(on):
10mΩ@4.5V;13mΩ@4.5V
Gate Threshold Voltage (Vgs(th)):
700mV@250uA;500mV@250uA
Type:
N-Channel + P-Channel
Reverse Transfer Capacitance (Crss@Vds):
99pF;140pF
Number:
1 N-Channel + 1 P-Channel
Output Capacitance(Coss):
150pF;170pF
Input Capacitance(Ciss):
950pF;900pF
Pd - Power Dissipation:
35W;30.8W
Gate Charge(Qg):
23nC@4.5V;33nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 5000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
