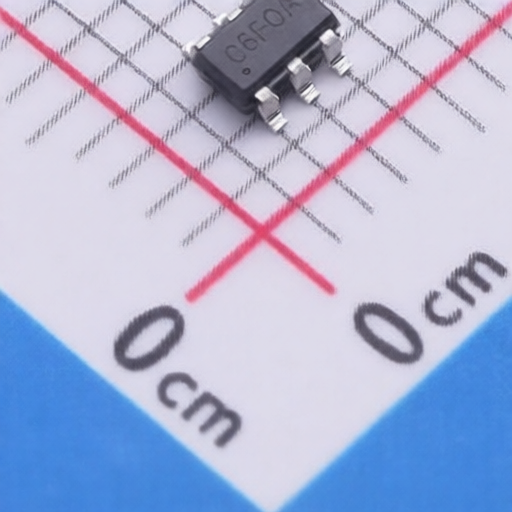

3PEAK TPA2296F-S6TR-S
Manufacturer:
3PEAK
Asian Brands
Mfr. Part #:
TPA2296F-S6TR-S
Package:
SOT-23-6
Customer #:
Key Attributes:
High-Voltage, High-Side Current Sense Amplifier
Description:
3V~18V 300kHz 50uV 50V/V -100mV~70V 250nA 20V/us 1 115dB SOT-23-6 Amplifiers RoHS
Datasheet:
3PEAK TPA2296F-S6TR-S
Products Specifications
Manufacturer:
Package:
SOT-23-6
Voltage - Supply:
3V~18V
Gain Bandwidth Product:
300kHz
Vos - Input Offset Voltage:
50uV
Input Offset Voltage Drift(Vos TC):
0.6uV/℃
Gain:
50V/V
Vcm - Common Mode Voltage:
-100mV~70V
Ib - Input Bias Current:
250nA
Maximum Power Supply Range (Vdd-Vss):
40V
Slew Rate:
20V/us
Number of Channels:
1
Quiescent Current(Iq):
600uA
Common Mode Rejection Ratio(CMRR):
115dB
Operating Temperature:
-40℃~+125℃
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542339000 |
| USHTS | 8542330001 |
| TARIC | 8542339000 |
| CAHTS | 8542330000 |
| BRHTS | 85423390 |
| INHTS | 85423300 |
| MXHTS | 8542.33.99 |
