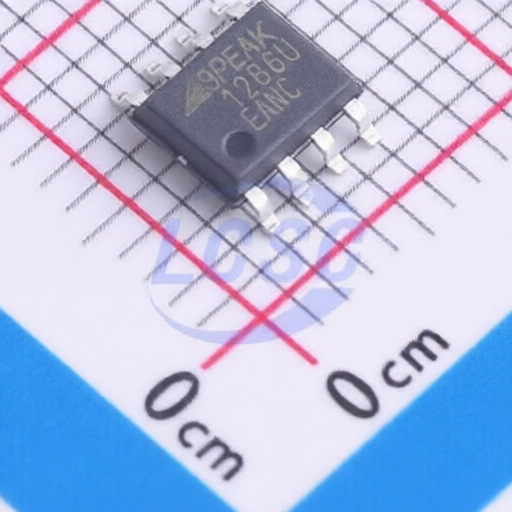

3PEAK TPA1286U-SO1R
Manufacturer:
3PEAK
Asian Brands
Mfr. Part #:
TPA1286U-SO1R
Package:
SOP-8
Customer #:
Key Attributes:
High Voltage, Precision, Zero-drift, Instrumentation Amplifier
Description:
50uV 1.5nA 5V/us 80dB 1.6MHz Rail-to-Rail Output SOP-8 Amplifiers RoHS
Datasheet:
3PEAK TPA1286U-SO1R
Products Specifications
Manufacturer:
Package:
SOP-8
Settling time:
2.1us
Vos - Input Offset Voltage:
50uV
Ib - Input Bias Current:
1.5nA
Slew Rate:
5V/us
Quiescent Current(Iq):
4.5mA
Common Mode Rejection Ratio(CMRR):
80dB
Output Current:
70mA
Operating Temperature:
-45℃~+125℃
Power Supply Rejection Ratio (PSRR):
120dB
Voltage - Supply:
4V~36V;-18V~-2V;2V~18V
Gain Bandwidth Product:
1.6MHz
Input Offset Voltage Drift(Vos TC):
200nV/℃
Maximum Power Supply Range (Vdd-Vss):
36V
Input Offset Current Drift (Ios TC):
10pA/℃
Rail To Rail:
Rail-to-Rail Output
Input Offset Current(Ios):
300pA
Noise density(eN):
15nV/√Hz@1kHz
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 4000 |
| Sales Unit | Piece |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
3PEAK
834 Products
3PEAK designs and manufactures a broad range of high performance analog integrated circuits, with emphasis on low power, low noise, and high precision. We strive to provide the best class analog products to our customers in industrial, medical instruments, communication and consumer electronics industry.
3PEAK products are manufactured by Tower-Jazz, an Analog/RF specialty wafer foundry with factories in Israel and US. We invested heavily in quality control and operation excellence. Our products are all comprehensively tested, with stringent quality control flow before they are shipped to our customers. Before a new product is released to production, it is fully characterized in 3PEAK's internal laboratory, as well as validated by third party independent laboratories.
Our company motto: In Quality and Consistency We Trust.
