3PEAK TPC5121S08-QF8R
Manufacturer:
3PEAK
Asian Brands
Mfr. Part #:
TPC5121S08-QF8R
Package:

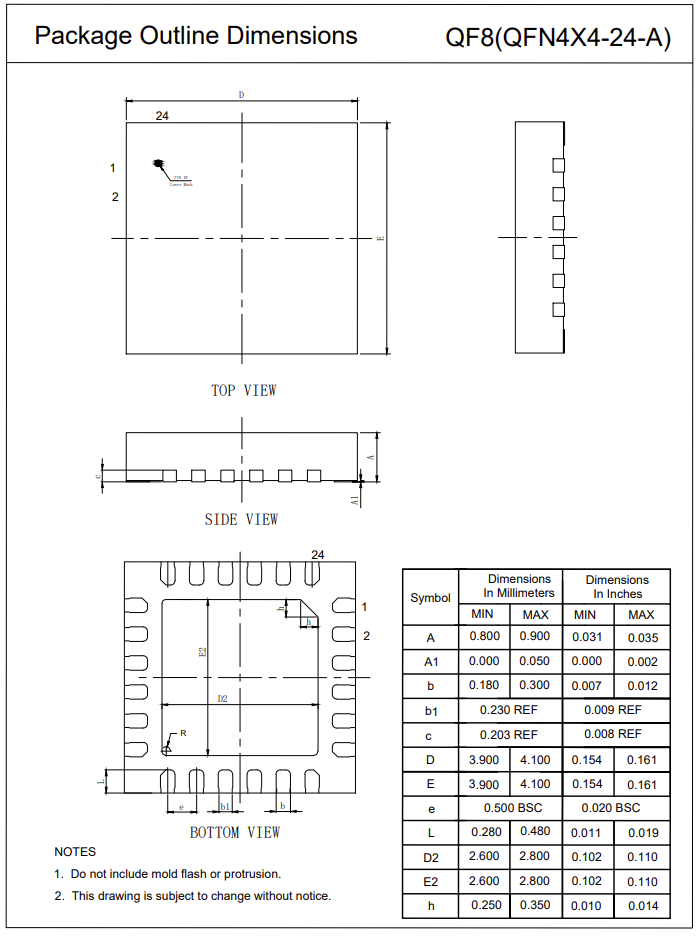

QFN-24-EP(4x4)
Customer #:
Key Attributes:
12-bit 1-MHz SAR ADC
Description:
SPI 2.7V~5.25V -40℃~+125℃ QFN-24-EP(4x4) Analog to Digital Converters (ADC) RoHS
Datasheet:
3PEAK TPC5121S08-QF8R
Products Specifications
Manufacturer:
Package:
QFN-24-EP(4x4)
Interface:
SPI
Full-Scale Range(FSR):
2.5V;5V
Quiescent Current (Iq):
3.8mA
Voltage - Supply:
2.7V~5.25V
Sampling Rate:
1MHz
Number of Channels:
8
Integral non - linearity:
1.5LSB
Temperature Range:
-40℃~+125℃
Clock Frequency:
20MHz
Voltage Reference:
Built-in;External
Resolution(Bits):
12
S/N Ratio:
71dB
ADC architecture:
SAR
Programmable Gain:
Support
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
3PEAK
834 Products
3PEAK designs and manufactures a broad range of high performance analog integrated circuits, with emphasis on low power, low noise, and high precision. We strive to provide the best class analog products to our customers in industrial, medical instruments, communication and consumer electronics industry.
3PEAK products are manufactured by Tower-Jazz, an Analog/RF specialty wafer foundry with factories in Israel and US. We invested heavily in quality control and operation excellence. Our products are all comprehensively tested, with stringent quality control flow before they are shipped to our customers. Before a new product is released to production, it is fully characterized in 3PEAK's internal laboratory, as well as validated by third party independent laboratories.
Our company motto: In Quality and Consistency We Trust.
